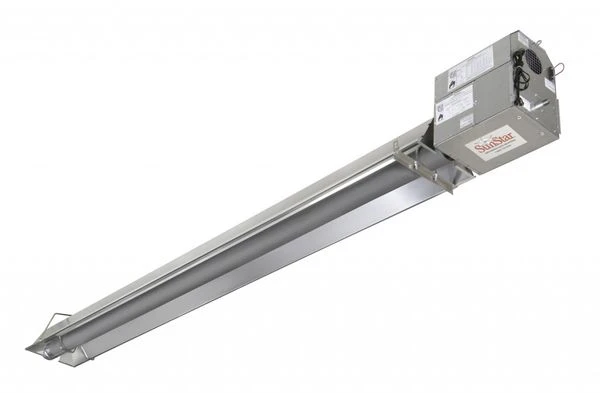

Name: SunStar Tough Guy Positive Pressure Straight Tube Single Stage Infrared Heater - 125,000 BTU
SKU: SPS12560TGN5
Availability: InStock

Manufacturer: SunStar
Part Numbers: SPS12530TGL5, SPS12530TGN5, SPS12540TGL5, SPS12540TGN5, SPS12550TGL5, SPS12550TGN5, SPS12560TGL5, SPS12560TGN5
eFireplaceStore Item Number: SST-SPS12530TGL5

Features

Color: Silver(SPS12530TGN5, SPS12530TGL5)
Product Dimensions: 32′ W x 6 1/4″ H x 13″ D(SPS12530TGN5, SPS12530TGL5), 42′ W x 6 1/4″ H x 13″ D(SPS12540TGN5, SPS12540TGL5), 52′ W x 6 1/4″ H x 13″ D(SPS12550TGN5, SPS12550TGL5), 62′ W x 6 1/4″ H x 13″ D(SPS12560TGN5, SPS12560TGL5)
No draft hoods
Enclosed motor
Heavy duty cast iron burner
Maintenance-free operation
Enclosed combustion chamber
100% gas shut-off safety control
5 year limited warranty on all tubes
30 second pre-purge before ignition
Highly efficient aluminum reflectors
Heavy duty permanently lubricated ball bearing
Individual reflectors can rotate up to 45 degrees
30 second post-purge after thermostat is satisfied
Suitable for horizontal or angle mounting up to 45 degrees

Technical Specifications

Maximum BTU Output: 125,000
Min/Max Natural Gas Inlet Pressure: 5″/14″ WC
Min/Max Propane Inlet Pressure: 11″/14″ WC
Amps: 2.4
Volts: 120 AC 60Hz
Minimum Top Clearances: 6″
Minimum Side Clearances: 28″
Minimum Bottom Clearances: 76″
Minimum End Clearances: 20″
Ignition Type: Direct Spark

*Please Note: This item is custom made by the manufacturer and can not be cancelled or returned once the order is placed unless the item is defective or damaged in transit.

If you’re looking for a top quality, tough single stage heater, you’ve found it with the SunStar Tough Guy Positive Pressure Straight Tube Single Stage Infrared Heater – 125,000 BTU. This 125k BTU single stage heater features a heavy duty cast iron burner, 100% gas shut-off safety control, and can be mounted horizontally or at an angle. It’s perfect for heating your garage, warehouse, or greenhouse. With several different lengths available, you’re sure to find the right tough heater for your space today!
