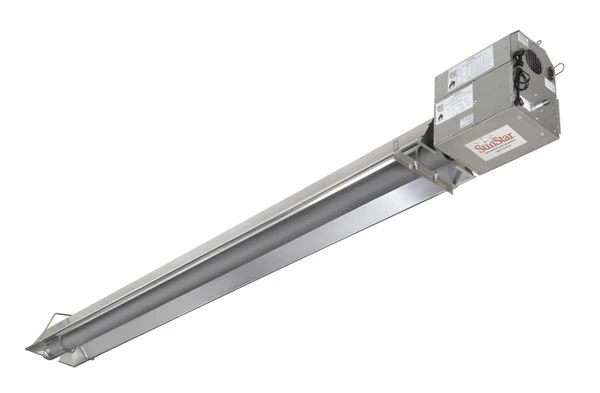

Name: SunStar Positive Pressure Straight Tube Single Stage Infrared Heater - 175,000 BTU
SKU: SPS17570N5
Availability: InStock

Manufacturer: SunStar
Part Numbers: SPS17540L5, SPS17540N5, SPS17550L5, SPS17550N5, SPS17560L5, SPS17560N5, SPS17570L5, SPS17570N5
eFireplaceStore Item Number: SST-SPS17540L5

Features

Color: Silver(SPS17540N5, SPS17540L5)
Product Dimensions: 42′ W x 6 1/4″ H x 13″ D(SPS17540N5, SPS17540L5), 52′ W x 6 1/4″ H x 13″ D(SPS17550N5, SPS17550L5), 62′ W x 6 1/4″ H x 13″ D(SPS17560N5, SPS17560L5), 72′ W x 6 1/4″ H x 13″ D(SPS17570N5, SPS17570L5)
No draft hoods
Enclosed motor
Heavy duty cast iron burner
Maintenance-free operation
Enclosed combustion chamber
100% gas shut-off safety control
5 year limited warranty on all tubes
30 second pre-purge before ignition
Highly efficient aluminum reflectors
Heavy duty permanently lubricated ball bearing
Individual reflectors can rotate up to 45 degrees
30 second post-purge after thermostat is satisfied
Suitable for horizontal or angle mounting up to 45 degrees

Technical Specifications

Maximum BTU Output: 175,000
Min/Max Natural Gas Inlet Pressure: 5″/14″ WC
Min/Max Propane Inlet Pressure: 11″/14″ WC
Amps: 2.4
Volts: 120 AC 60Hz
Minimum Top Clearances: 6″
Minimum Side Clearances: 38″
Minimum Bottom Clearances: 86″
Minimum End Clearances: 20″
Ignition Type: Direct Spark

*Please Note: This item is custom made by the manufacturer and can not be cancelled or returned once the order is placed unless the item is defective or damaged in transit.

Are you looking for a single stage heater that works in hard to heat spaces? The SunStar Positive Pressure Straight Tube Single Stage Infrared Heater – 175,000 BTU is perfect for hard to heat spaces like barns, warehouses, and garages. With an enclosed combustion chamber, highly efficient aluminum reflectors, and heavy duty cast iron burner, this single stage heater is tough and ready to give you all the heat you could ask for. It can either be installed horizontally or an angle up to 45 degrees and comes with a five year limited warranty. Don’t pass by this great heater today.
