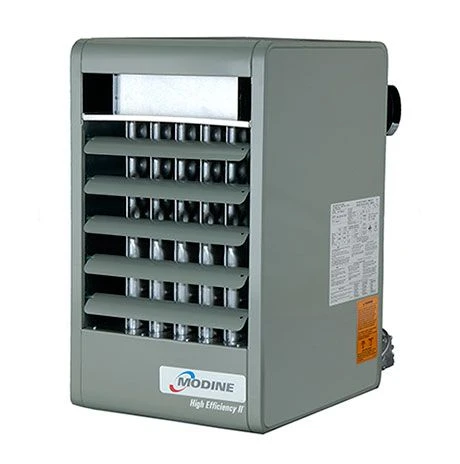

Name: Modine Vertical PDP Propeller Power Vented Gas Fired Heater
SKU: PDP400AE0185SBAN
Availability: InStock

Manufacturer: Modine
Part Numbers: PDP150AE0130SBAN, PDP150AE0185SBAN, PDP175AE0130SBAN, PDP175AE0185SBAN, PDP200AE0130SBAN, PDP200AE0185SBAN, PDP250AE0130SBAN, PDP250AE0185SBAN, PDP300AE0130SBAN, PDP300AE0185SBAN
eFireplaceStore Item Number: MOE-PDP150AE0130SBAN

Features

Size: 21 Inches(PDP150AE0185SBAN, PDP150AE0130SBAN), 23 1/2 Inches(PDP175AE0185SBAN, PDP175AE0130SBAN), 25 Inches(PDP200AE0185SBAN, PDP200AE0130SBAN), 28 Inches(PDP300AE0185SBAN, PDP300AE0130SBAN), 33 Inches(PDP350AE0185SBAN, PDP350AE0130SBAN), 40 Inches(PDP400AE0185SBAN, PDP400AE0130SBAN)
Product Dimensions: 21″ W x 35 1/4″ H x 22″ D(PDP150AE0185SBAN, PDP150AE0130SBAN), 23 1/2″ W x 35 1/4″ H x 22″ D(PDP175AE0185SBAN, PDP175AE0130SBAN), 25 5/8″ W x 35 1/4″ H x 22″ D(PDP200AE0185SBAN, PDP200AE0130SBAN), 25 5/8″ W x 40 1/4″ H x 25″ D(PDP250AE0185SBAN, PDP250AE0130SBAN), 28 5/8″ W x 40 1/4″ H x 25″ D(PDP300AE0185SBAN, PDP300AE0130SBAN), 33 5/8″ W x 40 1/4″ H x 25″ D(PDP350AE0185SBAN, PDP350AE0130SBAN), 40″ W x 40 1/4″ H x 25″ D(PDP400AE0185SBAN, PDP400AE0130SBAN)
Made in the USA
83% thermal efficiency
Intermittent pilot-ignition system
Choose from natural or propane gas
Several different BTUs to choose from
Designed to utilize a small diameter vent pipe
Wing screws included for easy access to bottom pan
100% shut-off included in case the unit does not light
A level hanging mechanism for easy field adjustments
Maximizes seasonal efficiency through a collector box and the power exhauster
Rotate the power exhaust 180 degrees so the unit can be vented vertically or horizontally
Safety pressure-switch monitors the vent pipe to assure flue gases escape and don’t build up

Technical Specifications

Maximum BTU Output: 150,000 BTU (PDP150AE0130SBAN, PDP150AE0185SBAN), 175,000 BTU (PDP175AE0130SBAN, PDP175AE0185SBAN), 200,000 BTU (PDP200AE0130SBAN, PDP200AE0185SBAN), 250,000 (PDP250AE0130SBAN, PDP250AE0185SBAN), 300,000 BTU (PDP300AE0130SBAN, PDP300AE0185SBAN), 350,000 BTU (PDP350AE0130SBAN, PDP350AE0185SBAN), 400,000 BTU (PDP400AE0130SBAN, PDP400AE0185SBAN)
Min/Max Natural Gas Inlet Pressure: 6″/14″ WC
Min/Max Propane Inlet Pressure: 11″/14″ WC
Volts: 120V
Minimum Top Clearances: 4″
Minimum Side Clearances: 1″
Minimum Bottom Clearances: 12″
Minimum End Clearances: 18″
Ignition Type: Direct Spark

* Please Note: Square footage that BTUs will cover will depend on climate zone. The square footage covered is an estimate.

You need to keep your building warm, and Modine gets that. That is why they created the Modine Vertical PDP Propeller Power Vented Gas Fired Heater. This heater comes in many BTU ranges, which can help keep your building at a much more comfortable level. Choose between natural or propane gas, and enjoy this efficient heater. With the smallest diameter venting available you won’t have to worry about large holes inside of your building, and with wing screws you can easily access the bottom pan. With Modine you can be sure your building, and what’s inside, stay warm.

Choose BTU	150000 BTUs, 175000 BTUs (add $170.10), 200000 BTUs (add $306.90), 250000 BTUs (add $909), 300000 BTUs (add $1227.60), 350000 BTUs (add $1612.80), 400000 BTUs (add $1869.30)
Choose Fuel Type	Natural Gas, Propane Gas
