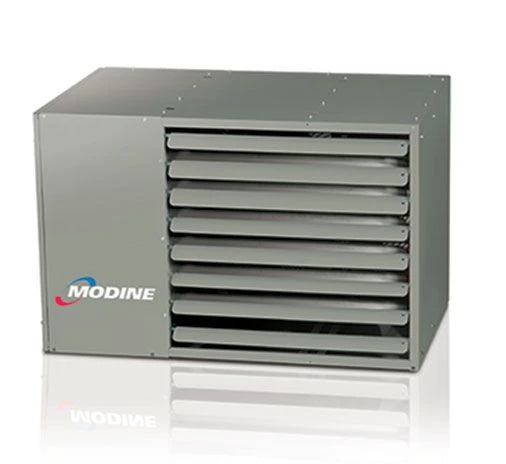

Name: Modine Stainless Steel Horizontal Power Vented Separated Combustion Unit Heaters - 175K BTU
SKU: PTS175SS0111
Availability: InStock

Manufacturer: Modine
Part Number: PTS175SS0111
eFireplaceStore Item Number: MOE-PTS175SS0111

Features

Size: 42 Inches
Product Dimensions: 42 53/100″ W x 25 81/100″ H x 22 1/20″ D
Control step down transformer
Automatic reset vent pressure switch
Integrated direct spark control board
In-shot burners fire each heat exchanger tube
Remote flame sensor verifies ignition of all burners
High limit control switch is mounted in the air stream
Round vent pipe and combustion air inlet pipe connection
Same-size vent and combustion air inlets throughout product line
Longer allowable vent lengths (up to 50′ vs 30′) versus previous line

Technical Specifications

Maximum BTU Output: 175,000 BTU (PTS175SS0111), 250,000 BTU (PTS250AS0111, PTS250AS0121)
Min/Max Natural Gas Inlet Pressure: 6″/7″ WC
Min/Max Propane Inlet Pressure: 11″/14″ WC
Minimum Top Clearances: 6″
Minimum Side Clearances: 6″
Minimum Bottom Clearances: 6″
Minimum End Clearances: 18″
Ignition Type: Direct Spark

* Please Note: Square footage that BTUs will cover will depend on climate zone. The square footage covered is an estimate.

Keep yourself warm with the help of Modine. The Modine Stainless Steel Horizontal Power Vented Separated Combustion Unit Heaters – 175K BTU is a great addition to any commercial building. With the integrated direct spark, control step down transformer, and more this is a high quality unit that will exceed your expectations. With longer allowable venting this unit provides a greater installation option to fit your needs. So go ahead and keep yourself warm this season with Modine.
