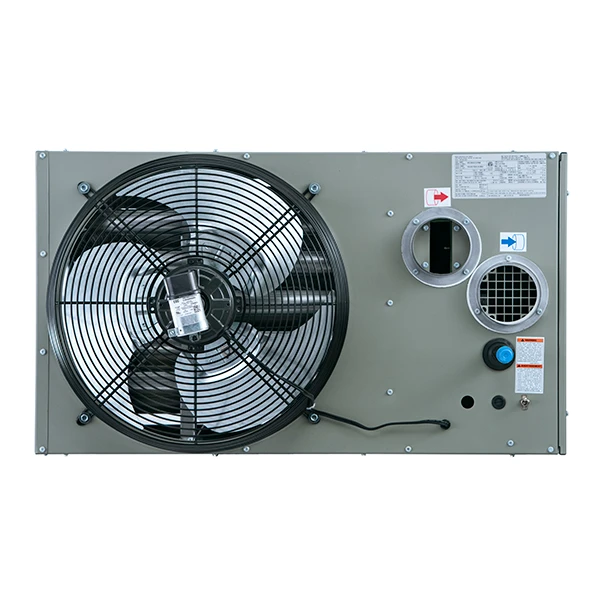

Name: Modine Hot Dawg Separated Combustion Gas Fired Unit Heater
SKU: HDS75AS0121
Availability: InStock

Manufacturer: Modine
Part Numbers: HDS125AS0111, HDS125AS0121, HDS30AS0111, HDS30AS0121, HDS45AS0111, HDS45AS0121, HDS75AS0111, HDS75AS0121
eFireplaceStore Item Number: MOE-HDS30AS0111

Features

Size: 35 1/2 Inches(HDS125AS0121, HDS125AS0111), 26 Inches(HDS30AS0121, HDS30AS0111)
Product Dimensions: 35 1/2″ W x 20 1/2″ H x 22″ D(HDS125AS0121, HDS125AS0111), 26 4/5″ W x 12 1/5″ H x 16 1/2″ D(HDS30AS0121, HDS30AS0111), 26 4/5″ W x 18″ H x 16 1/2″ D(HDS75AS0121, HDS75AS0111)
Made in the USA
Low profile and lightweight design
Finger-proof fan guards on all units
Several different BTUs to choose from
Choose between natural or propane gas
Draws combustion air from outside the workspace
Easily installs 1″ from ceiling with only two angle brackets
Reduces common concerns about dusty, dirty, or humid applications
Reduce the need for maintenance with permanently lubricated motor
The sealed compartment helps to protect the interior parts of the unit
Rotate 30-75 series units 180 degrees to create right or left hand controls
Factory assembled, certified separated combustion saves installation time
Power vented means small-diameter vent pipe for side-wall or roof venting

Technical Specifications

Maximum BTU Output: 30,000 BTU (HDS30AS0111, HDS30AS0121), 75,000 BTU (HDS45AS0111, HDS45AS0121), 100,000 BTU (HDS75AS0111, HDS75AS0121), 125,000 (HDS125AS0111, HDS125AS0121)
Min/Max Natural Gas Inlet Pressure: 6″/7″ WC
Min/Max Propane Inlet Pressure: 11″/14″ WC
Volts: 115V
Minimum Top Clearances: 1″
Minimum Side Clearances: 1″
Minimum Bottom Clearances: 1″
Minimum End Clearances: 18″
Ignition Type: Direct Spark

* Please Note: Square footage that BTUs will cover will depend on climate zone. The square footage covered is an estimate.

Heating your living space shouldn’t be difficult, and with Modine it isn’t. With the Modine Hot Dawg Separated Combustion Gas Fired Unit Heater you can find the right unit to properly heat your room. Choose from several different BTU ranges, and natural or propane gas, to get the adequate amount of heat that you need. With this light-weight and low profile design installing is a breeze. There is no need to worry about dust and debris, this unit is fully encased and its parts protected. A simple 180 rotation creates right or left hand controls that mean you can have the freedom to install your heater just about anywhere. With Modine, you will rest assured that your home is heated and you stay safe from the cold.
