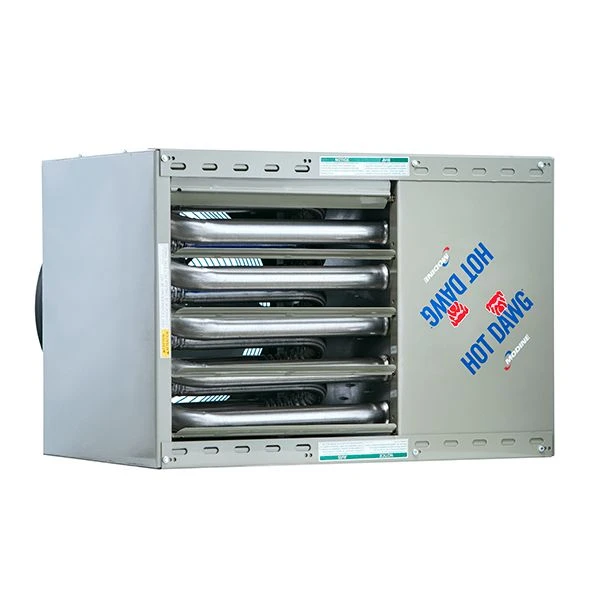

Name: Modine Hot Dawg Power Vented Garage Gas Fired Unit Heater
SKU: HD75AS0121
Availability: InStock

Manufacturer: Modine
Part Numbers: HD100AS0111, HD100AS0121, HD125AS0111, HD125AS0121, HD30AS0111, HD30AS0121, HD45AS0111, HD45AS0121, HD60AS0111, HD60AS0121
eFireplaceStore Item Number: MOE-HD30AS0111

Features

Size: 35 1/2 Inches(HD100AS0121, HD100AS0111), 26 Inches(HD30AS0121, HD30AS0111)
Product Dimensions: 35 1/2″ W x 20 1/2″ H x 22″ D(HD100AS0121, HD100AS0111), 26 4/5″ W x 12 1/5″ H x 16 1/2″ D(HD30AS0121, HD30AS0111), 26 4/5″ W x 12 1/2″ H x 16 1/2″ D(HD45AS0121, HD45AS0111), 26 4/5″ W x 18″ H x 16 1/2″ D(HD60AS0121, HD60AS0111)
Made in the USA
Low profile and lightweight design

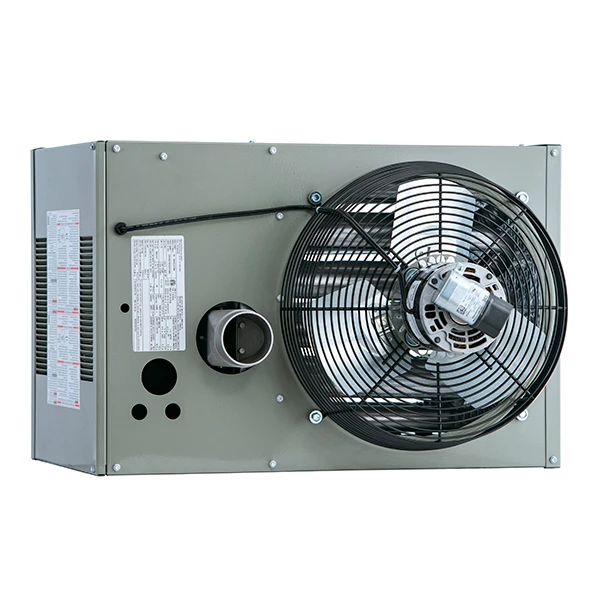

Finger-proof fan guards on all units
Choose between natural or propane gas
100% shut-off with continuous retry for safe ignition
Easily installs 1″ from ceiling with only two angle brackets
Reduce the need for maintenance with permanently lubricated motor
Rotate 30-75 series units 180 degrees to create right or left hand controls
Power vented means small-diameter vent pipe for side-wall or roof venting
Made in the USA
Low profile and lightweight design
Finger-proof fan guards on all units
Several different BTUs to choose from
Choose between natural or propane gas
100% shut-off with continuous retry for safe ignition
Easily installs 1″ from ceiling with only two angle brackets
Reduce the need for maintenance with permanently lubricated motor
Rotate 30-75 series units 180 degrees to create right or left hand controls
Power vented means small-diameter vent pipe for side-wall or roof venting

Technical Specifications

Maximum BTU Output: 30,000 BTU (HD30AS0111, HD30AS0121), 45,000 BTU (HD45AS0111, HD45AS0121), 60,000 BTU (HD60AS0111, HD60AS0121), 75,000 BTU (HD75AS0111, HD75AS0121), 100,000 BTU (HD100AS0111, HD100AS0121), 125,000 BTU (HD125AS0111, HD125AS0121)
Min/Max Natural Gas Inlet Pressure: 6″/7″ WC
Min/Max Propane Inlet Pressure: 11″/14″ WC
Volts: 115V
Minimum Top Clearances: 1″
Minimum Side Clearances: 1″
Minimum Bottom Clearances: 1″
Minimum End Clearances: 18″
Ignition Type: Direct Spark

* Please Note: Square footage that BTUs will cover will depend on climate zone. The square footage covered is an estimate.

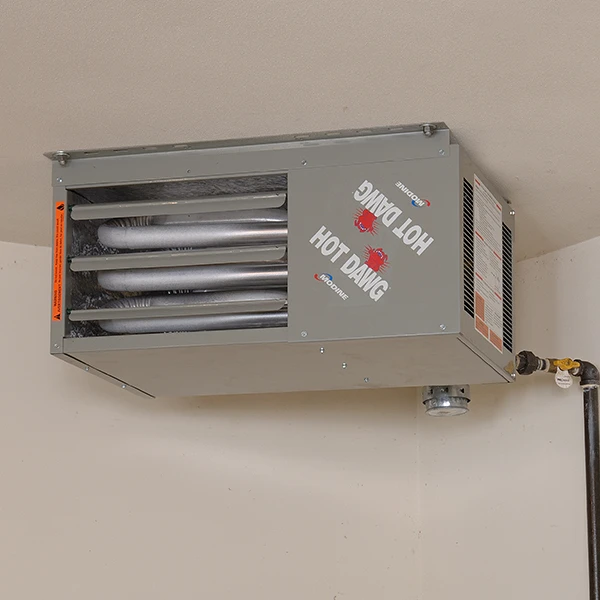

It’s no secret that a garage can be one of the coldest areas of your home. That’s why Modine designed the Modine Hot Dawg Power Vented Garage Gas Fired Unit Heater. This lightweight, low profile design makes it easy to install, and it installs with as little at 1″ from the ceiling. This gives you the flexibility to install your unit where you need it most. Rotating the unit 180 degrees will also create either right, or left, controls and these units boast some of the smallest diameter vent pipe for side-wall or roof venting purposes. These units also come in several different BTU ranges so that you can be sure your garage has the proper amount of heat it needs. So if you’re looking for the right way to heat your garage then look no further than Modine for all of your heating needs.

Choose BTU	100000 BTUs (add $501.30), 125000 BTUs (add $639), 30000 BTUs, 45000 BTUs (add $45.90), 60000 BTUs (add $226.80), 75000 BTUs (add $268.20)
Choose Fuel Type	Natural Gas, Propane Gas
