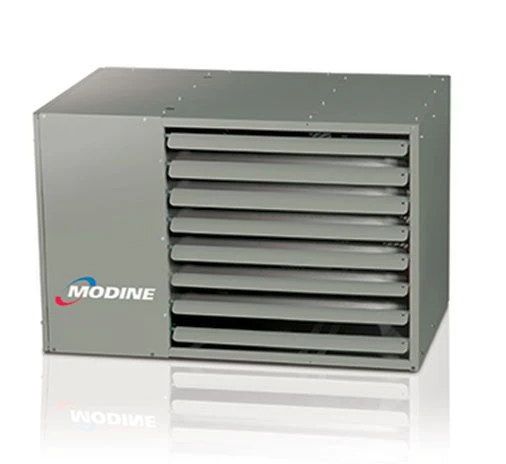

Name: Modine Aluminized Steel Horizontal Power Vented Separated Combustion Unit Heaters - 250K BTU
SKU: PTS250AS0121
Availability: InStock

Manufacturer: Modine
Part Numbers: PTS250AS0111, PTS250AS0121
eFireplaceStore Item Number: MOE-PTS250AS0111

Features

Size: 42 Inches(PTS250AS0121, PTS250AS0111)
Product Dimensions: 42 53/100″ W x 31 31/100″ H x 22 1/20″ D(PTS250AS0121, PTS250AS0111)
Control step down transformer
Choose from natural or propane gas
Integrated direct spark control board
Automatic reset vent pressure switch
In-shot burners fire each heat exchanger tube
Remote flame sensor verifies ignition of all burners
High limit control switch is mounted in the air stream
Round vent pipe and combustion air inlet pipe connection
Same-size vent and combustion air inlets throughout product line
Longer allowable vent lengths (up to 50′ vs 30′) versus previous line

Technical Specifications

Maximum BTU Output: 175,000 BTU (PTS175SS0111), 250,000 BTU (PTS250AS0111, PTS250AS0121)
Min/Max Natural Gas Inlet Pressure: 6″/7″ WC
Min/Max Propane Inlet Pressure: 11″/14″ WC
Minimum Top Clearances: 6″
Minimum Side Clearances: 6″
Minimum Bottom Clearances: 6″
Minimum End Clearances: 18″
Ignition Type: Direct Spark

* Please Note: Square footage that BTUs will cover will depend on climate zone. The square footage covered is an estimate.

With Modine you don’t have to shiver all through the cold months. With the Modine Aluminized Steel Horizontal Power Vented Separated Combustion Unit Heaters – 250K BTU you can stay plenty warm this season. With longer allowable venting this unit provides a greater installation option to fit your needs. With the integrated direct spark, control step down transformer, and more this is a high quality unit that will exceed your expectations. Simply choose from natural or propane gas. So don’t fret about the cold this winter. Let Modine help you.
