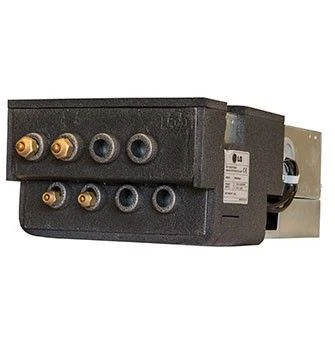

Name: LG Multi F Max 2 Port Branch Distribution Unit
SKU: LGPMBD3620
Availability: InStock

Manufacturer: LG
Part Number: LGPMBD3620
eFireplaceStore Item Number: LGE-LGPMBD3620

Features

Color: Brown
Size: 11 Inches
Dimensions: 11 23/32″ W x 6 5/16″ H x 17″ D
Does not require a condensate drain
Uses electronic expansion valves (EEV)
Designed for use with R410A refrigerant
Two, two-positioned solenoid valves per port
Designed to mount fully concealed above a finished ceiling
Required to connect Multi F Max outdoor units to indoor units
Manufactured of galvanized steel plate and internally insulated
Factory-installed control boards and an integral microprocessor
Internally piped, wired, assembled, and run-tested at the factory
Can connect a maximum of 2 Branch Distribution units to the outdoor unit

Technical Specifications

Max Number of Indoor Units: 2
Connected Indoor Unit Capacity: 7,000-24,000 BTU
Max Nominal Capacity: 48,000 BTU
Voltage: 230 V

* Please Note: Installation by a licensed professional is required where applicable.

*Also Note: Warranties apply when registered and when installed by a licensed professional.

*Also Note: For LGE-LMU480HV/LGE-LMU540HV/LGE-LMU600HV/LGE-LMU360HHV/LGE-LMU420HHV Only

Need to connect multiple indoor units to your Multi F Max outdoor unit? Then you need an LG Multi F Max Branch Distribution Unit! You can connect a maximum of two distribution units together allowing you to connect up to eight indoor units to a supported outdoor unit. Each connected indoor unit can have a capacity of 7,000-24,000 BTUs. Designed to mount fully concealed above a finished ceiling so as to not be visible once installed. Pick up an LG Multi F Max Branch Distribution Unit to go with your Multi F Max system today!
