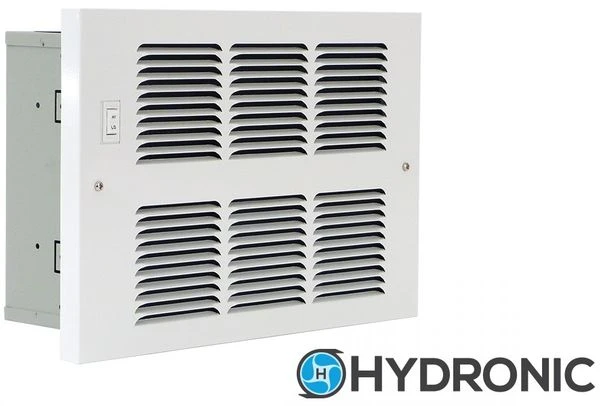

Name: King Electrical Small In-Wall Hydronic Heater 4000 BTUs
SKU: H412-3-4-AS-FS-GW
Availability: InStock

Manufacturer: King Electric
Part Numbers: H412-2-3-AS-FS-GW, H412-3-4-AS-FS-GW
eFireplaceStore Item Number: KEM-H412-2-3-AS-FS-GW
UPCs: 093319210185, 093319210192

Features

Color: White
Size: 15 Inches
Dimensions: 15 3/4″ W x 10 1/2″ H x 5 5/8″ D
Hi/Off/Lo fan switch
Flow-through design
2-year limited warranty
Proudly made in the USA
1/2″ trade size copper tubes
4 to 8 aluminum fins per inch
Permanently lubricated motor
Fast coil heating for heat transfer
ETL certified for USA and Canada
Heat only the rooms which need it
For use with HW series thermostats
In-wall, fan-driven, zone-controlled heat
Tangential blowers for whisper quiet operation
Compatible with typical hot potable water sources
Borrows energy from what’s already there: your hot water heater

Technical Specifications

Range of BTUs: 140F/60C Max/Min BTU Output: 1,800 / 1,200 BTUs
160F/71C Max/Min BTU Output: 3,600 / 1,700 BTUs (KEM-H412-2-3-AS-FS-GW)
140F/60C Max/Min BTU Output: 3,100 / 1,800 BTUs
160F/71C Max/Min BTU Output: 4,000 / 2,400 BTUs (KEM-H412-3-4-AS-FS-GW)
High/Low Amps: .54/.51 A (Both)
Water Pressure Drop at 2 GPM: .36/foot (Both)
Motor High/Low CFM: 80/50 (Both)
Motor High/Low RPM: 2,000/1,750 (Both)
Listings: UL (Both)

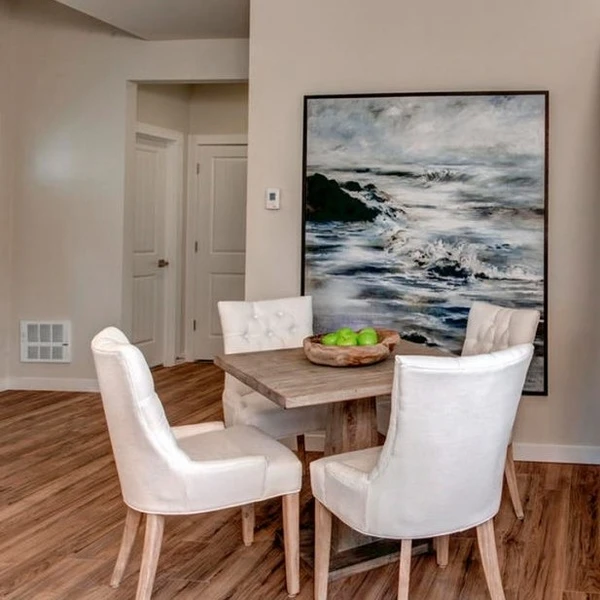

The King Electrical Small In-Wall Hydronic Heater 4000 BTUs uses the energy from a building’s hot water source to offer efficient, whisper quiet operation and the ability to reduce utility bills with individual thermostat room control. By installing hydronic systems in every room, you can easily heat only the areas in use and conserve energy. Designed to fit neatly between standard wall studs, this in-wall heater provides out-of-the-way positioning ideal for use in bedrooms, bathrooms, and laundry rooms. Heat your house with a King Electrical Small In-Wall Hydronic Heater 4000 BTUs!
