Name: King Electrical Pumphouse Utility Heater
SKU: U2450
Availability: InStock

Manufacturer: King Electric
Part Numbers: U12100, U12100-SS, U1250, U1250-SS, U24100, U24100-SS, U2450
eFireplaceStore Item Number: KEM-U12100
UPCs: 093319126059, 093319126097, 093319126158, 093319126219, 093319126271, 093319126332, 093319126370

Features

Color: Grey, Silver
Size: 5 Inches
Dimensions: 5 1/16″ W x 17″ H x 3 1/2″ D
1-year limited warranty
Convection/radiant heat
Proudly made in the USA
Meets ASSE-1060 requirements
ETL listed for use in damp locations

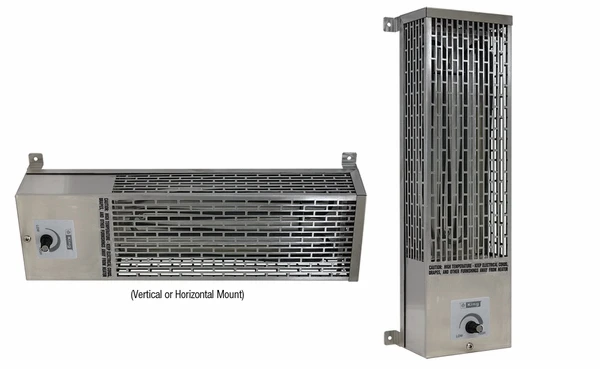

Horizontal or vertical (up to 500 W) mount
Incoloy 840 superalloy, corrosion-resistant element
Built-in thermostat with frost protection (40F to 90F)

Technical Specifications

Amps: 15 A
Volts: 120 V (U12100, U12100-SS, U1250, U1250-SS) 240/208 V (U24100, U24100-SS, U2450)
Watts: 500 W (U1250, U1250-SS) 500/375 W (U2540) 1,000 W (U12100, U12100-SS) 1,000/750 W (U24100, U24100-SS)
Minimum Bottom Clearance: 12 Inches
Minimum Side Clearances: 12 Inches
Minimum Front Clearance: 16 Inches
Minimum Top Clearance: 16 Inches

* Please Note: Dual rated heaters will draw 13 percent fewer amps and 25 percent less wattage when operated at 208 V.

The King Electrical Pumphouse Utility Heater is designed to reduce moisture from mechanical equipment and keep pumps, valves, and farm machinery from freezing. Having the radiant heat absorbed by the metal equipment makes this heater more effective than convection heaters. Features an Incoloy 840 Superalloy heating element for superior corrosion resistance. The built-in thermostat turns off when the ambient temperature is safely above freezing. The optional 304 stainless steel version helps prevent corrosion associated with high moisture locations like pump houses. A steel guard helps keep foreign objects away from the element. This heater is simple and reliable with no moving parts to wear out or maintain, making it a great choice for freeze protection. Specifically designed to operate in both horizontal and vertical (up to 500 W max) positions. Keep your pump from freezing with a King Electrical Pumphouse Utility Heater!

Choose Style	Grey 120 V 1000 W, Grey 120 V 500 W (add $141.05), Grey 240 V 1000 W (add $26.20), Grey 240 V 500 W (add $5.80), Stainless Steel 120 V 1000 W (add $200.15), Stainless Steel 120 V 500 W (add $141.05), Stainless Steel 240 V 1000 W (add $145.20)
