Name: King Electrical Pic-A-Watt Compact Unit Heater
SKU: KBP4806-3MP
Availability: InStock

Manufacturer: King Electric
Part Numbers: KBP1230, KBP2006-3MP, KBP2406, KBP2406-3MP, KBP2704, KBP4806-3MP
eFireplaceStore Item Number: KEM-KBP2406
UPCs: 093319151877, 093319151884, 093319151907, 093319151914, 093319151938, 093319151976

Features

Color: Black
Size: 10 Inches
Dimensions: 10 3/8″ W x 13 5/8″ H x 11 1/4″ D
Built-in thermostat
5-year limited warranty
Long life cast iron motor
Multiple wattage options
Proudly made in the USA
Fan delay to dissipate heat
Selector switch: fan/heat/off
Original Pic-A-Watt element
Patented smart limit protection
Universal wall/ceiling bracket included

Technical Specifications

Amps: 23.8/15.8/7.9 A (KBP1230) 15.8/7.9 A (KBP2006-3MP) 23.8/19.8/15.8/11.9/7.9/4 A (KBP2406) 13.7/6.9 A (KBP2406-3MP) 14.5/10.8/7.2/3.6 A (KBP2704) 7.2 A (KBP4806-3MP)
Volts: 120 V (KBP1230) 208 V (KBP2006-3MP) 240/208 V (KBP2406, KBP2406-3MP) 277 V (KBP2704) 480 V (KBP4806-3MP)
Watts: 2850/1900/950 W (KBP1230) 5700/4750/3800/2850/1900/950 W (KBP2406) 5700/2850 W (KBP2006-3MP, KBP2406-3MP) 4000/3000/2000/1000 W (KBP2704) 6000 W (KBP4806-3MP)
Minimum Top Clearance: 2 Inches
Minimum Side Clearances: 6 Inches
Minimum Back Clearance: 5 Inches
Minimum Front Clearance: 18 Inches
Minimum Bottom Clearance: 72 Inches

* Please Note: Dual rated heaters will draw 13 percent fewer amps and 25 percent less wattage when operated at 208 V.

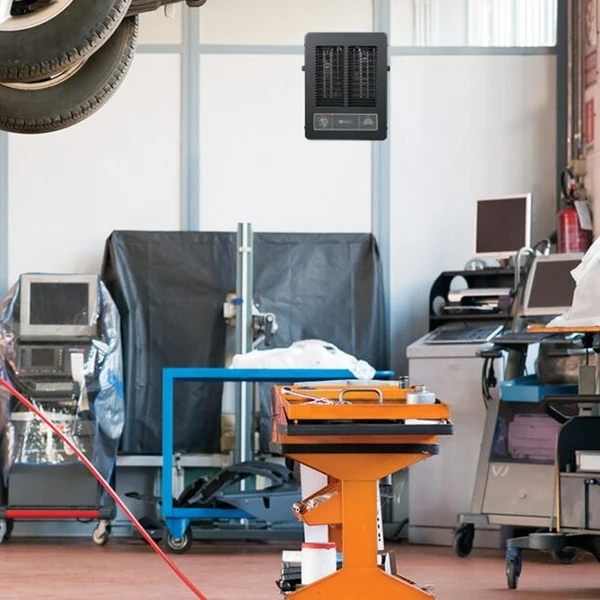

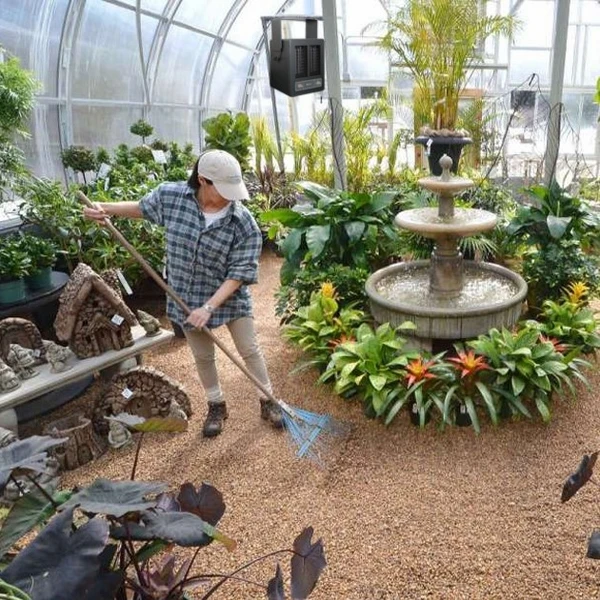

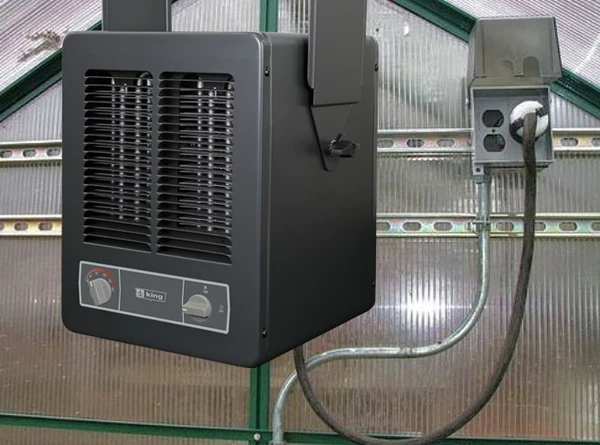

The King Electrical Pic-A-Watt Compact Unit Heater is the industry standard for multi-wattage garage/shop heaters. It even provides an ideal solution for greenhouse heating. Designed for rugged performance, the flow-through design efficiently moves air by pulling air from the back of the heater and discharging it out the front, easily heating a large space. With high-quality components suitable for both residential and commercial applications, it comes standard with a 3-position switch and an accurate built-in thermostat. The integral fan delay continues to dissipate heat from the elements during the cool-down period, maximizing the heat exchange in the room. King’s exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements.

Choose Power Level	120 V 2850 1900 950 W (add $52), 208 V 5700 2850 W (add $151), 240 V 5700 2850 W (add $151), 240 V 5700 4750 3800 2850 1900 950 W, 277 V 4000 3000 2000 1000 W (add $443), 480 V 6000 W (add $667)
