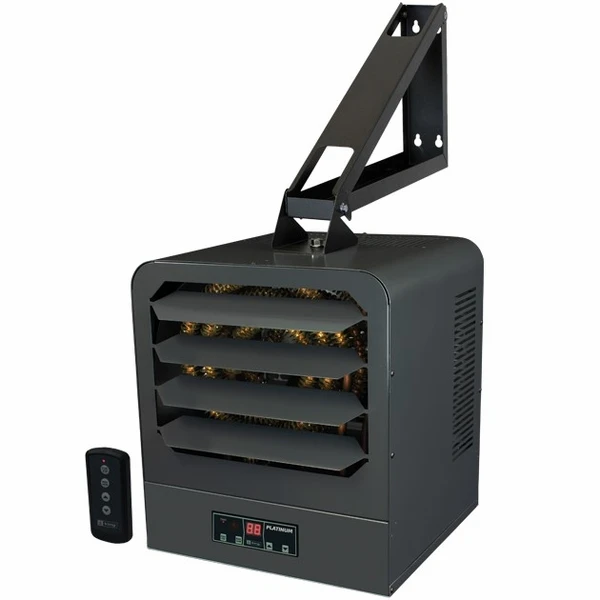

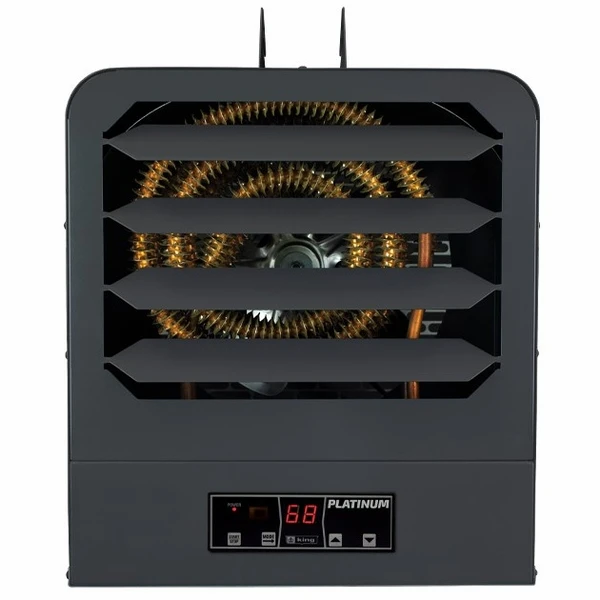

Name: King Electrical KB Platinum Multi-Phase Heavy Duty Electric Heater
SKU: KB4815-3MP-P
Availability: InStock

Manufacturer: King Electric
Part Numbers: KB2005-3MP-P, KB2007-3MP-P, KB2010-3MP-P, KB2405-3MP-P, KB2407-3MP-P, KB2410-3MP-P, KB4805-3MP-P, KB4807-3MP-P, KB4810-3MP-P, KB4815-3MP-P
eFireplaceStore Item Number: KEM-KB2005-3MP-P
UPCs: 093319133347, 093319133354, 093319133361, 093319133378, 093319133385, 093319133439, 093319133491, 093319133507, 093319133514, 093319134023

Features

Color: Black
Size: 15 Inches
Dimensions: 15″ W x 16 1/2″ H x 18″ D
5-year limited warranty
Proudly made in the USA
Adjustable louvers to direct air
Patented smart limit protection
Built-in fan delay to dissipate heat
Hand-held remote and wall holder
Timer and summer fan-only modes
High mass steel fin heat exchanger
Universal wall/ceiling bracket included
Permanently lubricated unit bearing motor
Energy-saving electronic temperature controller
Auto memory feature: returns unit to last settings after a power outage

Technical Specifications

Amps: 14.4/8.3 A (KB2005-3MP-P) 24/13.9 A (KB2007-3MP-P) 47.6/27.5 A (KB2010-3MP-P) 20.8/12 A (KB2405-3MP-P) 31.3/18 A (KB2407-3MP-P) 41.7/24 A (KB2410-3MP-P) 10.4/6 A (KB4805-3MP-P) 15.6/9 A (KB4807-3MP-P) 20.8/12 A (KB4810-3MP-P) 26/15 A (KB4815-3MP-P)
Volts: 208 V (KB2005-3MP-P, KB2007-3MP-P, KB2010-3MP-P) 240/208 V (KB2405-3MP-P, KB2407-3MP-P, KB2410-3MP-P) 480 V (KB4805-3MP-P, KB4807-3MP-P, KB4810-3MP-P, KB4815-3MP-P)
Watts: 5,000 W (KB2005-3MP-P, KB2405-3MP-P, KB4807-3MP-P) 7,500 W (KB2007-3MP-P, KB2407-3MP-P, KB4807-3MP-P) 10,000 W (KB2010-3MP-P, KB2410-3MP-P, KB4810-3MP-P) 15,000 W (KB4815-3MP-P)
Minimum Top Clearance: 6 Inches
Minimum Side Clearances: 6 Inches
Minimum Back Clearance: 6 Inches
Minimum Bottom Clearance: 72 Inches

* Please Note: Dual rated heaters will draw 13 percent fewer amps and 25 percent less wattage when operated at 208 V.

The King Electrical KB Platinum Multi-Phase Heavy Duty Electric Heater is the most full-featured unit heaters on the market, with an in-built electronic thermostat for accuracy and remote control for simple operation. With integrated summer fan only and thermostat timer mode, the KB Platinum has you covered. Designed for use as primary or supplemental heat sources in large or exposed areas, including high-rise buildings, stores, warehouses, garages, water treatment, and fire room vaults to prevent freezing. Spiral finned steel elements and high CFM ensure even air distribution producing cooler element operation and prolonging heater life. By combining the highest quality components, with a dynamically balanced fan blade, the King Electrical KB Platinum Multi-Phase Heavy Duty Electric Heater will provide years of trouble-free service. Includes universal wall/ceiling bracket for simple installation.

Choose Power Level	208 V 10000 W (add $180), 208 V 5000 W (add $4), 208 V 7500 W (add $63), 240 V 10000 W (add $180), 240 V 5000 W (add $4), 240 V 7500 W, 480 V 10000 W (add $650), 480 V 15000 W (add $1296), 480 V 5000 W (add $474), 480 V 7500 W (add $650)
