Name: King Electrical Industrial Portable 1-Phase Heater
SKU: PKB2415-1-T-FM
Availability: InStock

Manufacturer: King Electric
Part Numbers: PKB2005-1-T-FM, PKB2007-1-T-FM, PKB2405-1-T-FM, PKB2407-1-T-FM, PKB2410-1-T-FM, PKB2415-1-T-FM
eFireplaceStore Item Number: KEM-PKB2005-1-T-FM
UPCs: 093319190746, 093319190760, 093319190869, 093319331682, 093319331705, 093319331743

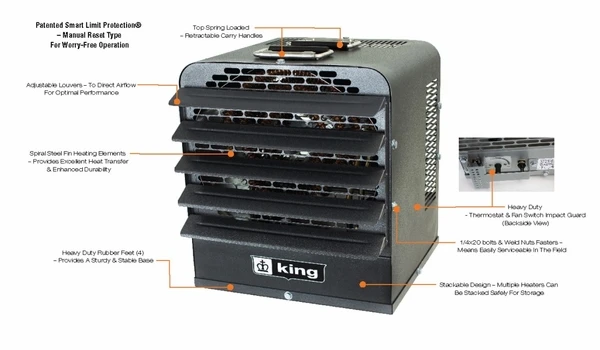

Features

Color: Black
Size: 15 Inches
Dimensions: 15 1/10″ W x 16 1/2″ H x 11″ D (PKB2005-1-T-FM, PKB2405-1-T-FM) 15 1/10″ W x 16 1/2″ H x 13 1/2″ D (PKB2007-1-T-FM, PKB2407-1-T-FM, PKB2410-1-T-FM) 15 1/10″ W x 16 1/2″ H x 18″ D (PKB2415-1-T-FM)
Fan-only switch
Simple plug-in design
2-year limited warranty
4 heavy-duty rubber feet
Proudly made in the USA
Long life unit bearing motor
Non-mercury tip-over switch
Patented smart limit protection

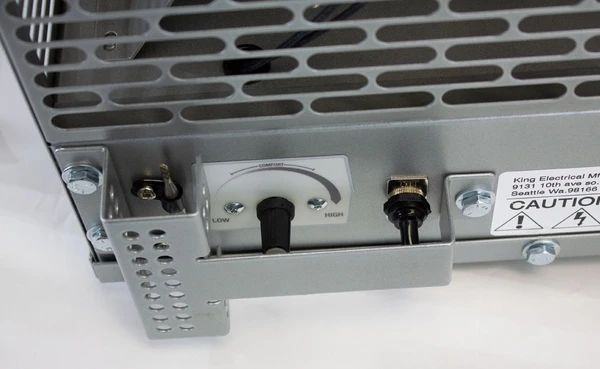

Built-in thermostat (40F to 100F)
Durable 20-gauge steel enclosure
6-foot SO Cord (plug not included)
High mass steel fin heat exchanger
Adjustable louvers, stackable design
Top spring-loaded retractable carrying handles
Assembled with 1/4-20 bolts for extra durability and easy serviceability

Technical Specifications

Amps: 24 A (PKB2005-1-T-FM) 36.1 A (PKB2405-1-T-FM) 20.8/18 A (PKB2007-1-T-FM) 31.3/26.9 A (PKB2407-1-T-FM) 41.7/36.1 A (PKB2410-1-T-FM) 62.5/54.1 A (PKB2415-1-T-FM)
Volts: 208 V (PKB2005-1-T-FM, PKB2007-1-T-FM) 240/208 V (PKB2405-1-T-FM, PKB2407-1-T-FM, PKB2410-1-T-FM, PKB2415-1-T-FM)

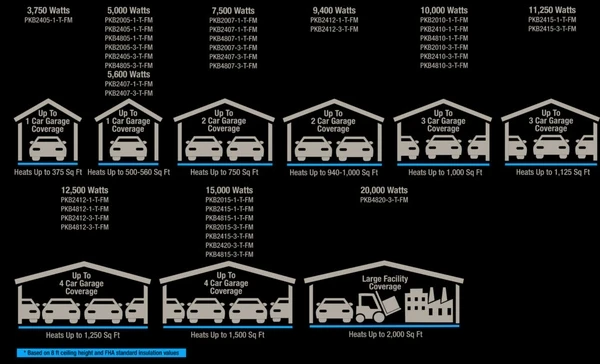

Watts: 5,000 W (PKB2005-1-T-FM) 7,500 W (PKB2405-1-T-FM) 5,000/3,750 W (PKB2007-1-T-FM) 7,500/5,600 W (PKB2407-1-T-FM) 10,000/7,500 W (PKB2410-1-T-FM) 15,000/11,250 W (PKB2415-1-T-FM)
Minimum Top Clearance: 12 Inches
Minimum Side Clearances: 12 Inches
Minimum Front Clearance: 36 Inches
Minimum Rear Clearance: 12 Inches

* Please Note: Dual rated heaters will draw 13 percent fewer amps and 25 percent less wattage when operated at 208 V.

The King Electrical Industrial Portable 1-Phase Heater is constructed to hold up to the rigorous demands of job sites or industrial facilities. It is the best heat source to assist in dry-out applications where dry electric heat is preferred to propane or kerosene space heaters. In addition, electric heat has no odor, flame, or carbon monoxide. The high CFM and low-temperature rise are also key features to make the King Electrical Industrial Portable 1-Phase Heater the best solution for temporary large-capacity heating applications. Spiral finned steel elements and high CFM ensure even air distribution producing cooler element operation and prolonging heater life.

Choose Power Level	208 V 5000 W (add $119), 208 V 7500 W (add $330.96), 240 V 10000 W (add $341.01), 240 V 15000 W (add $441.01), 240 V 5000 W, 240 V 7500 W (add $6)
