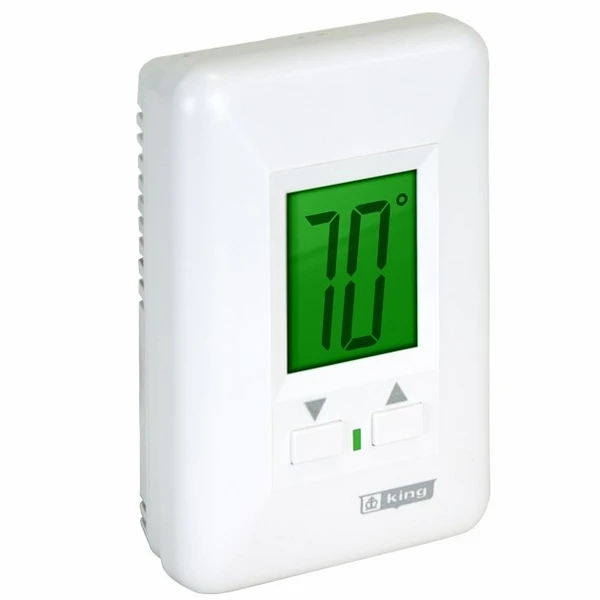

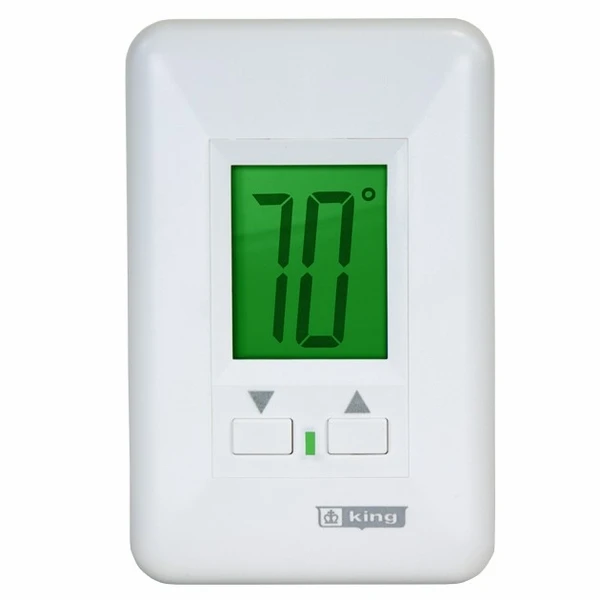

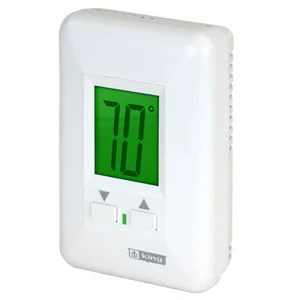

Name: King Electrical Hydronic Two-Circuit Non-Programmable Thermostat
SKU: HW120
Availability: InStock

Manufacturer: King Electric
Part Number: HW120
eFireplaceStore Item Number: KEM-HW120
UPC: 093319190487

Features

Color: White
Size: 3 Inches
Dimensions: 3 1/8″ W x 4 7/8″ H x 2″ D
1-year limited warranty
2 circuits, 1-minute delay on 2nd circuit
LCD backlight display with temperature
Save up to 15 percent on your heating costs
Electronic temperature sensing is the most accurate technology
3-minute cycle rate reduces temperature swings and increases comfort

Technical Specifications

Power type: Four wires
Voltage: 120 V
Amps: 12.5 A
Temp range: 40F to 95F (4C to 35C)
Application type: Hydronic heaters

The King Electrical Hydronic Two-Circuit Non-Programmable Thermostat is intended for use as a 2 circuit thermostat controlling a circuit pump and fan on a hydronic coil heating system, though it could be used when needing a 2 circuit control with a 1-minute delay on the second circuit. This control solves the historic problem of using a standard 22 amp bi-metal heating thermostat on a hydronic system which requires high amp loads to be accurate. Without a load they will not shut off properly, continuing to circulate hot water when not needed. This control successfully controls both circuits. This creates energy savings and superior comfort control while providing excellent hydronic control.
