Name: King Electrical ESP Max 22 Programmable Thermostat With Illuminated LCD Display
SKU: ESP230-R
Availability: InStock

Manufacturer: King Electric
Part Numbers: ESP120-R, ESP230-R
eFireplaceStore Item Number: KEM-ESP120-R
UPCs: 093319103784, 093319103807

Features

Color: White
Size: 3 Inches
Dimensions: 3 1/8″ W x 4 7/8″ H x 2″ D
System on/off switch
1-year limited warranty
Red LED heater on indicator
LCD display of room temperature
“Best In Class” 22AMP max rating
cULus certified for USA and Canada
Simple up & down temperature selection
Single pole design with third wire to power display
ESP saves up to 28 percent on your heating costs
Comfort color backlight display (red at 75F/blue at 65F)
Fully programmable for 7-days and 4 time periods per day
Electronic temperature sensing is the most accurate technology
Electronic sensing with thermistor for accurate temperature control
Shallow design allows more wiring room inside full electrical boxes
Complies with all codes requiring anticipated or electronic thermostats
3-minute cycle rate reduces temperature swings and increases comfort

Technical Specifications

Power type: Single pole, 3-wires
Voltage: 120 V AC (KEM-ESP120-R), 208/240 V AC (KEM-ESP230-R)
Amps: 22 A
Temp range: 44F to 95F (7C to 35C)
Application type: All types of electric heaters

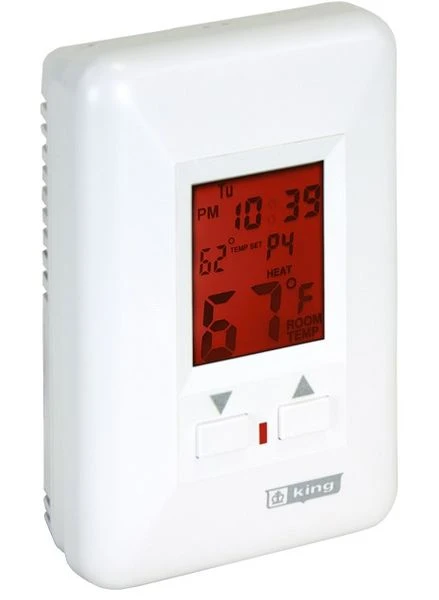

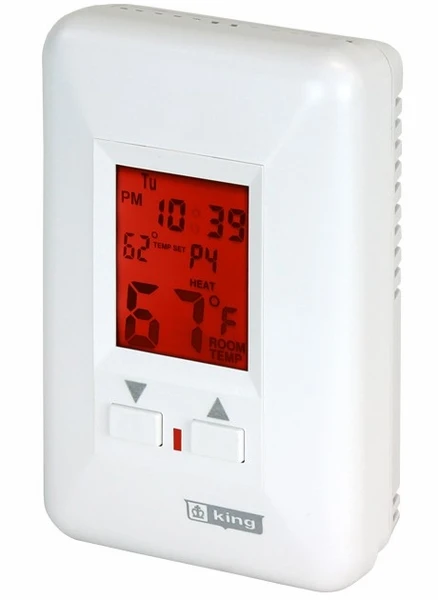

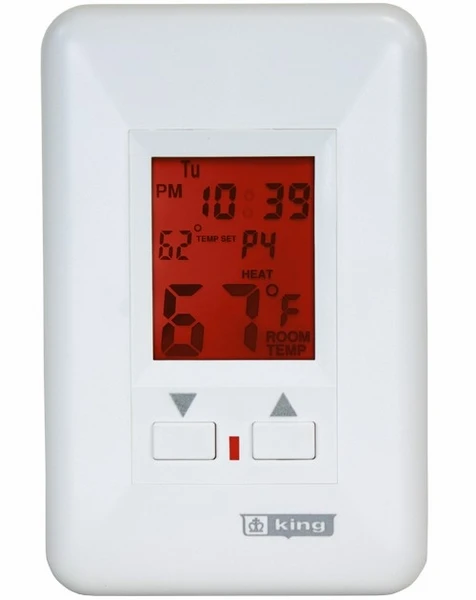

The King Electrical ESP Max 22 Programmable Thermostat with Illuminated LCD Display offers a “Best In Class” 22 amp max rating for larger heating circuits. Featuring 7 individual day programmability for maximum temperature control and four time and temperature settings. Product is three wire, line powered, with a large back-lit display. It has all the features you want without too many buttons – simple is always better. Backlighting has been added to the full-size display and an on/off switch to control the illumination. On the front, two simple buttons control the temperature up and down, while all the programming keys are hidden under the front cover, protected from wandering, unauthorized fingers. Comfort and convenience is the primary goal with the King Electrical ESP Max 22 Programmable Thermostat with Illuminated LCD Display!
