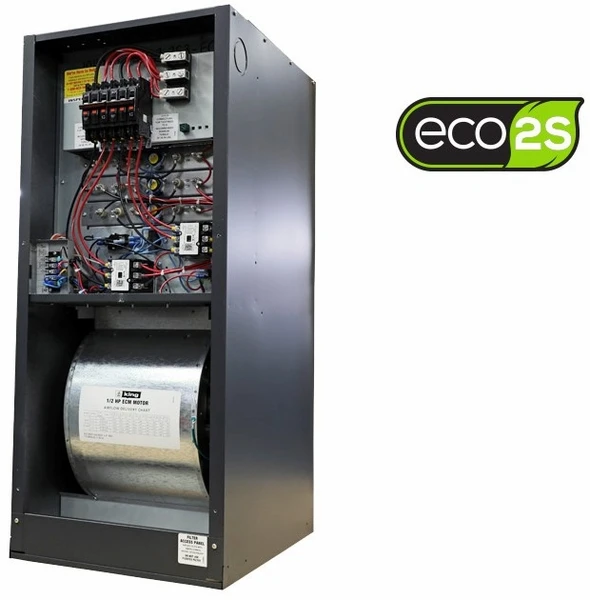

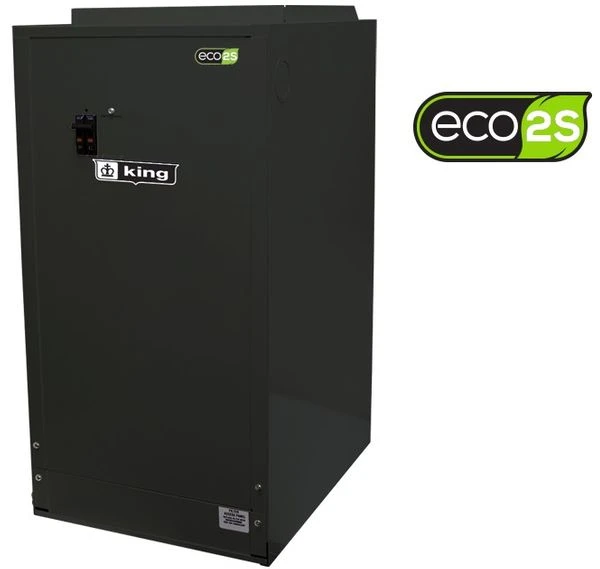

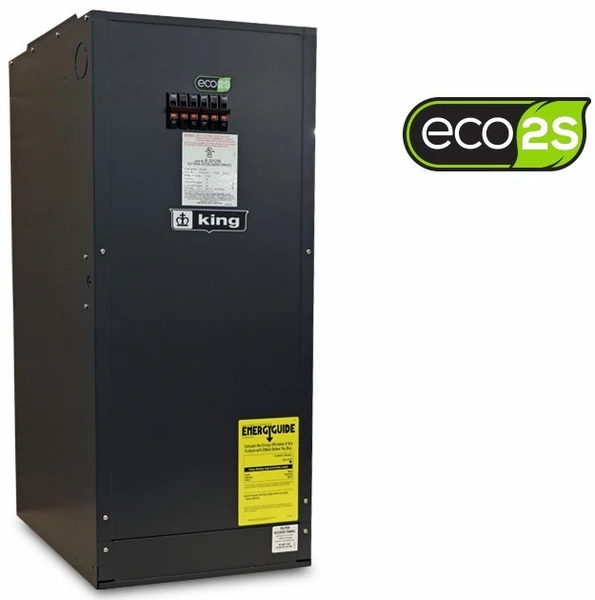

Name: King Electrical Energy Saving Electric Furnace
SKU: KFS2420-1-2S1-ECM
Availability: InStock

Manufacturer: King Electric
Part Numbers: KFS2015-1-2S1-ECM, KFS2410-1-2S1-ECM, KFS2412-1-2S1-ECM, KFS2415-1-2S1-ECM, KFS2420-1-2S1-ECM
eFireplaceStore Item Number: KEM-KFS2410-1-2S1-ECM
UPCs: 093319207062, 093319207079, 093319207109, 093319221167, 093319327975

Features

Color: Black
Size: 16 Inches
Dimensions: 16″ W x 30 1/2″ H x 20″ D (KFS2015-1-2S1-ECM, KFS2410-1-2S1-ECM, KFS2412-1-2S1-ECM, KFS2415-1-2S1-ECM) 16″ W x 37 1/2″ H x 20″ D (KFS2420-1-2S1-ECM)
Extended life
Fan only relay
Breaker disconnects
Baked enamel finish
Downflow or up-flow
Welded cabinet design
Mobile home approved
5-year limited warranty
Inlet filter 16″ x 20″ x 1″
2-stage comfort heating
Standard 24 volt control
Proudly made in the USA
Energy efficient ECM motor
Dual inlet industrial blower
Horizontal or vertical mount
Sequenced heating elements
Heavy duty open coil element
Quiet sound insulated cabinet

Technical Specifications

BTUs: 34,130 (KFS2410-1-2S1-ECM) 40,956 (KFS2412-1-2S1-ECM) 51,195 (KFS2015-1-2S1-ECM, KFS2415-1-2S1-ECM) 68,260 (KFS2420-1-2S1-ECM)
Amps: 72 A (KFS2015-1-2S1-ECM) 42 A (KFS2410-1-2S1-ECM) 50 A (KFS2412-1-2S1-ECM) 63 A (KFS2415-1-2S1-ECM) 83 A (KFS2420-1-2S1-ECM)
Volts: 208 V (KFS2015-1-2S1-ECM) 240 V (KFS2410-1-2S1-ECM, KFS2412-1-2S1-ECM, KFS2415-1-2S1-ECM, KFS2420-1-2S1-ECM)
Watts: 10,000 W (KFS2410-1-2S1-ECM) 12,000 W (KFS2412-1-2S1-ECM) 15,000 W (KFS2015-1-2S1-ECM, KFS2415-1-2S1-ECM) 20,000 W (KFS2420-1-2S1-ECM)
Number of Elements: 2 (KFS2410-1-2S1-ECM, KFS2412-1-2S1-ECM) 3 (KFS2015-1-2S1-ECM, KFS2415-1-2S1-ECM) 4 (KFS2420-1-2S1-ECM)
Number of Phases: 1

* Please Note: Do not use pleated filters.

The King Electrical Energy Saving Electric Furnace adds a state-of-the-art electronically controlled motor and two heating stages for added comfort and maximum energy savings. Quiet operation allows you to put it almost anywhere it will fit; it can even be mounted either horizontally or vertically, giving you greater freedom when deciding where to install it. Whether commercial, residential, or process heating, this air furnace will do the job and provide years of excellent maintenance-free service. Stay warm with the King Electrical Energy Saving Electric Furnace!
