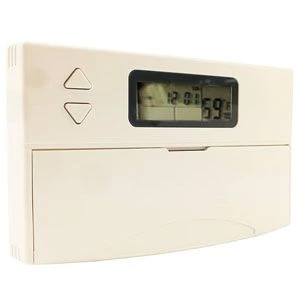

Name: King Electrical Electronic Low Voltage Programmable Thermostat With LCD Display
SKU: EP-3
Availability: InStock

Manufacturer: King Electric
Part Number: EP-3
eFireplaceStore Item Number: KEM-EP-3
UPC: 093319103708

Features

Color: White
Size: 4 Inches
Dimensions: 4 1/2″ W x 3 1/4″ H x 1 1/2″ D
1-year limited warranty
Two AA batteries included
Separate base plate to aid installation
Energy usage monitor keeps track of actual operational time
Pre-programmed energy-saving 5-1-1 schedule, four time periods per day
Hold mode allows for manual operation, may be used for vacation setback

Technical Specifications

Power type: Wired connection and 2 AA batteries
Voltage: 24V AC/DC
Amps: 1.0 A
Temp range: 44F to 95F (7C to 35C)
Application type: General
System Switch: 3 position (cool/off/heat)
Fan Switch: 2 position (on/auto)

The King Electrical Electronic Low Voltage Programmable Thermostat with LCD Display has a voltage rating of 24 VAC/VDC and a current rating of 1.0 Amps. It can be programmed for four time periods per day to save energy. The EP3 Thermostat keeps track of operational time. It also allows for manual operation and offers a temperature of range 50F to 90F degrees. It has an LCD display format with large font size. The thermostat has a three-position system switch and a two-position fan switch. It includes two AA batteries. It features a separate base plate to aid installation.
