Name: King Electrical Eco Designer Electronic Wall Heater
SKU: PX2417-ECO-WD-R
Availability: InStock

Manufacturer: King Electric
Part Numbers: PX1215-ECO-AD-R, PX1215-ECO-OB-R, PX1215-ECO-SN-R, PX1215-ECO-WD-R, PX2017-ECO-AD-R, PX2017-ECO-OB-R, PX2017-ECO-SN-R, PX2017-ECO-WD-R, PX2417-ECO-AD-R, PX2417-ECO-OB-R
eFireplaceStore Item Number: KEM-PX2417-ECO-WD-R
UPCs: 093319172377, 093319172384, 093319172391, 093319326794, 093319326800, 093319326817, 093319326824, 093319326831, 093319326848, 093319326855

Features

Color: Bronze, Grey, White
Size: 17 Inches
Dimensions: 17″ W x 9″ H x 3 3/4″ D
Pic-A-Watt element
5-year limited warranty
Multiple wattage options
Proudly made in the USA
Patented smart limit protection
Whisper quiet squirrel cage blower
Timer and summer fan-only modes
Smart ECO2S energy-saving design
Display lock feature for high traffic areas
Includes ECO2S remote temperature sensor
Hand-held remote control and wall holder included
2-stage heating: automatically uses the lowest wattage needed
Bedroom “environment” feature: turns off the display when not in use
Auto memory feature: returns unit to last settings after a power outage

Technical Specifications

Amps: 6.25/12.5 A (PX1215-ECO-AD-R, PX1215-ECO-OB-R, PX1215-ECO-SN-R, PX1215-ECO-WD-R) 3.6/8.4 A (PX2017-ECO-AD-R, PX2017-ECO-OB-R, PX2017-ECO-SN-R, PX2017-ECO-WD-R) 3.1/7.3 A (PX2417-ECO-AD-R, PX2417-ECO-OB-R, PX2417-ECO-SN-R, PX2417-ECO-WD-R)
Volts: 120 V (PX1215-ECO-AD-R, PX1215-ECO-OB-R, PX1215-ECO-SN-R, PX1215-ECO-WD-R) 208 V (PX2017-ECO-AD-R, PX2017-ECO-OB-R, PX2017-ECO-SN-R, PX2017-ECO-WD-R) 240/208 V (PX2417-ECO-AD-R, PX2417-ECO-OB-R, PX2417-ECO-SN-R, PX2417-ECO-WD-R)
Watts: 750/1000/1250/1500 W (PX1215-ECO-AD-R, PX1215-ECO-OB-R, PX1215-ECO-SN-R, PX1215-ECO-WD-R) 750/1000/1250/1500/1750 W (PX2017-ECO-AD-R, PX2017-ECO-OB-R, PX2017-ECO-SN-R, PX2017-ECO-WD-R, PX2417-ECO-AD-R, PX2417-ECO-OB-R, PX2417-ECO-SN-R, PX2417-ECO-WD-R)
Minimum Top Clearance: 12 Inches
Minimum Side Clearances: 6 Inches
Minimum Front Clearance: 36 Inches
Minimum Rear Clearance: 4 Inches

* Please Note: Dual rated heaters will draw 13 percent fewer amps and 25 percent less wattage when operated at 208 V.

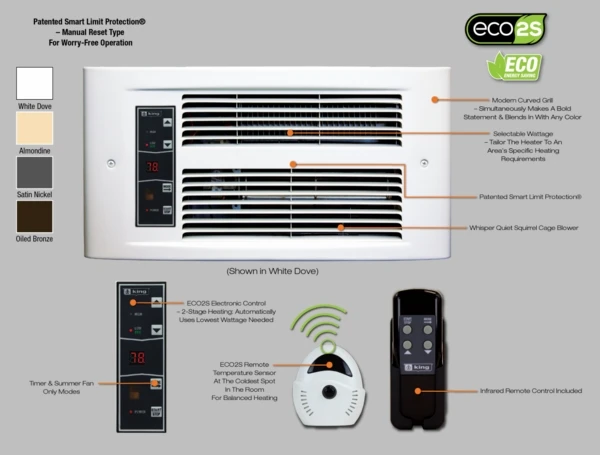

The King Electrical Eco Designer Electronic Wall Heater delivers maximum energy efficiency with automatic 2-stage heating, automatically using the lowest wattage needed to heat the room. In a cold room, it utilizes full power to heat the room quickly. Once the desired temperature is achieved, the heater automatically reduces the wattage to maintain the room temperature and save energy. With the remote temperature sensor, your heater knows exactly where the room’s cold spot is and works smarter to keep the entire room comfortable. Just place it on a wall or shelf and get the right temperature, right where you want it. The King Electrical Eco Designer Electronic Wall Heater includes both summer fan only and timer mode options, as well as a remote control for simple operation and a Display Lock feature for high-traffic areas. In addition, King’s exclusive Pic-A-Watt selectable wattage element allows customers to select from a range of wattage options, tailoring the heater to a room’s specific heating requirements.

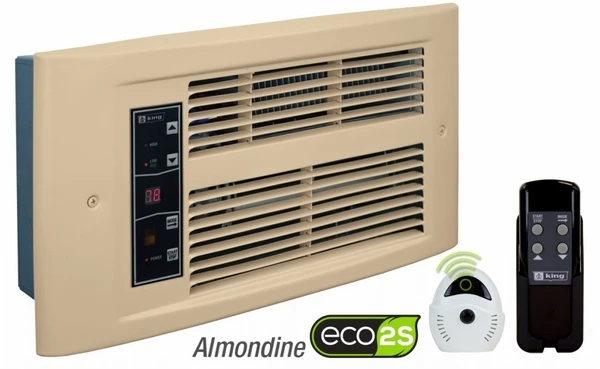

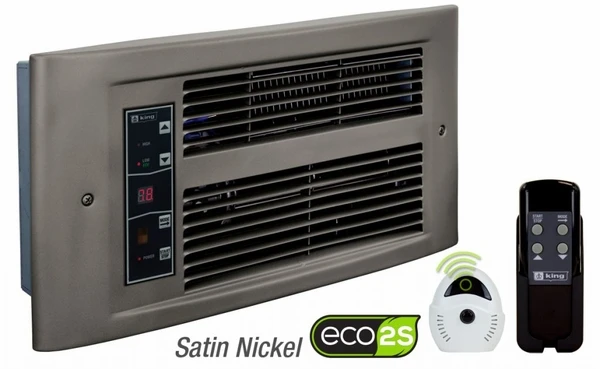

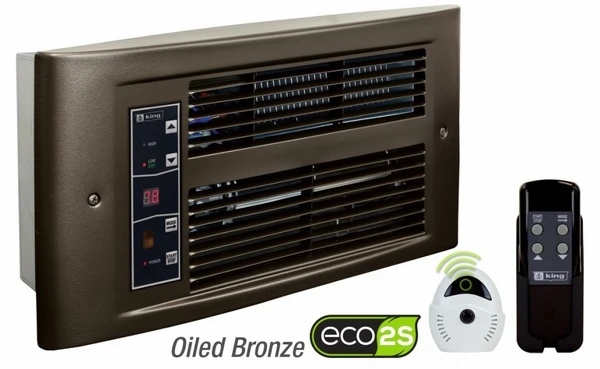

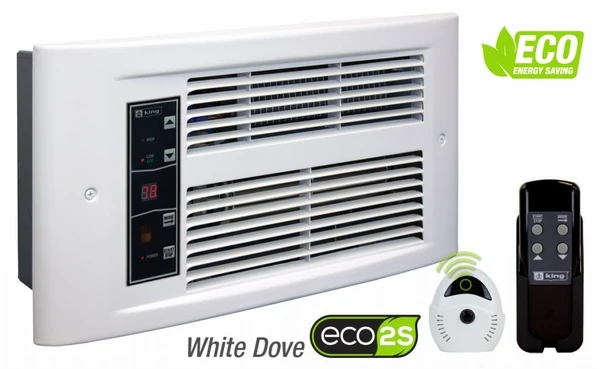

Choose Finish	Almondine, Oiled Bronze (add $16.92), Satin Nickel (add $17.92), White Dove (add $38.87)
Choose Voltage	120 V (add $50.87), 208 V (add $17.92), 240 V
