Name: King Electrical Comfort Craft Designer Pic-A-Watt Large Wall Heater
SKU: LPW2740T-S2-WD-R
Availability: InStock

Manufacturer: King Electric
Part Numbers: LPW1227T-S2-WD-R, LPW2045T-S2-WD-R, LPW2445T-S2-AD-R, LPW2445T-S2-OB-R, LPW2445T-S2-WD-R, LPW2740T-S2-WD-R
eFireplaceStore Item Number: KEM-LPW1227T-S2-WD-R
UPCs: 093319326329, 093319326336, 093319326343, 093319326459, 093319326480, 093319326565

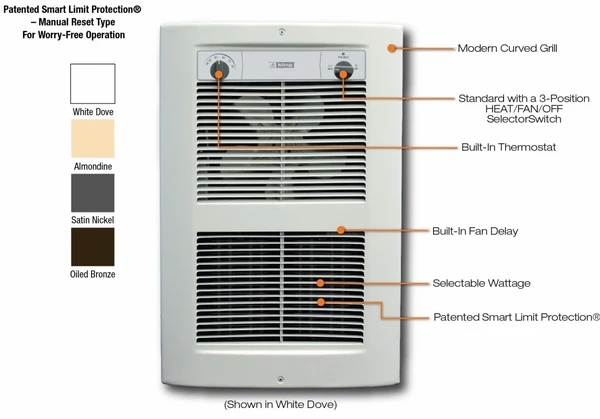

Features

Color: Brown, White
Size: 14 Inches
Dimensions: 14 9/16″ W x 21 13/16″ H x 5 5/16″ D
5-year limited warranty
Proudly made in the USA
Long life unit bearing motor
Selector switch: fan/heat/off
Patented smart limit protection
High-quality built-in thermostat

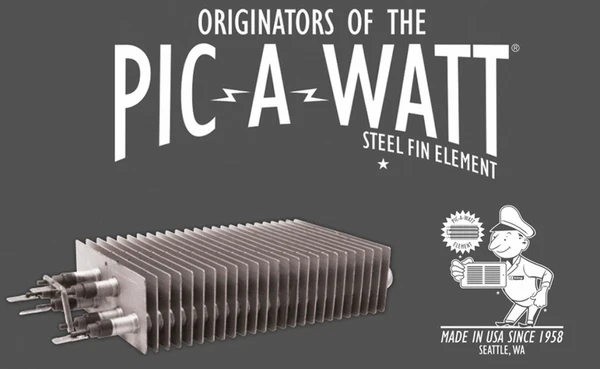

Pic-A-Watt multiple wattage options element

Technical Specifications

Amps: 10.4 to 22.9 A (LPW1227T-S2-WD-R) 10.8-21.6 A (LPW2045T-S2-WD-R) 9.4 to 18.8 A (LPW2445T-S2-WD-R, LPW2445T-S2-AD-R, LPW2445T-S2-OB-R) 7.2 to 14.4 A (LPW2740T-S2-WD-R)
Volts: 120 V (LPW1227T-S2-WD-R) 208 V (LPW2045T-S2-WD-R) 240/208 V (LPW2445T-S2-WD-R, LPW2445T-S2-AD-R, LPW2445T-S2-OB-R) 277 V (LPW2740T-S2-WD-R)
Watts: 1250-1500-1750-2000-2750 W (LPW1227T-S2-WD-R) 2250-2750-3000-3250-3500-3750-4000-4500 V (LPW2045T-S2-WD-R, LPW2445T-S2-WD-R, LPW2445T-S2-AD-R, LPW2445T-S2-OB-R) 2000-3000-4000 W (LPW2740T-S2-WD-R)
Minimum Top Clearance: 12 Inches
Minimum Side Clearances: 6 Inches
Minimum Front Clearance: 36 Inches
Minimum Bottom Clearance: 4 Inches

* Please Note: Dual rated heaters will draw 13 percent fewer amps and 25 percent less wattage when operated at 208 V.

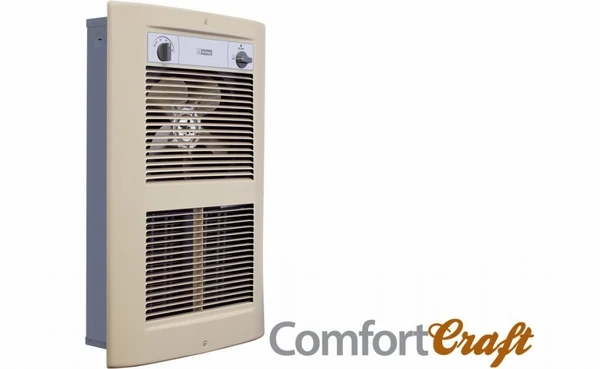

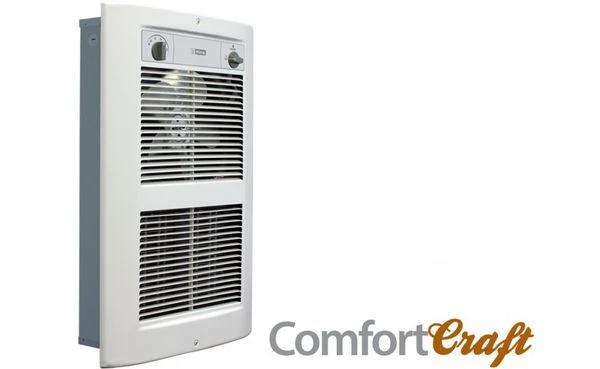

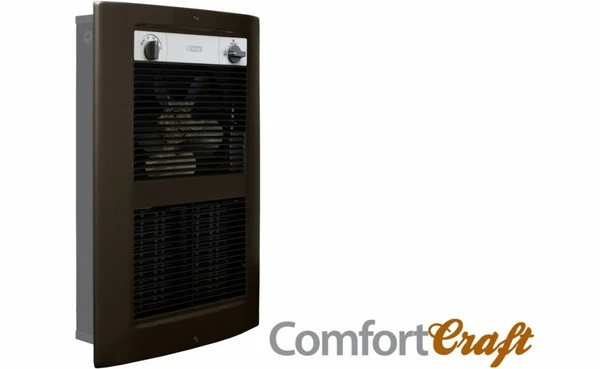

The King Electrical Comfort Craft Designer Pic-A-Watt Large Wall Heater redefines comfort with a sleek and modern new architectural design. Offering higher output than the industry-leading PAW heater. King’s exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements. With up to 4500 W, this is the most popular large wall heater, used in both residential and commercial applications. Standard with a 3-position heat/fan/off switch and a fan delay to help dissipate heat from the high-mass steel plate fin elements thereby prolonging heater life and increasing energy efficiency. The King Electrical Comfort Craft Designer Pic-A-Watt Large Wall Heater has degrees on the label so temperature selection is easy and accurate.

Choose Style	120 V White Dove, 208 V White Dove (add $74.95), 240 V Almondine (add $97.95), 240 V Oiled Bronze (add $20), 240 V White Dove (add $20), 277 V White Dove (add $136.59)
