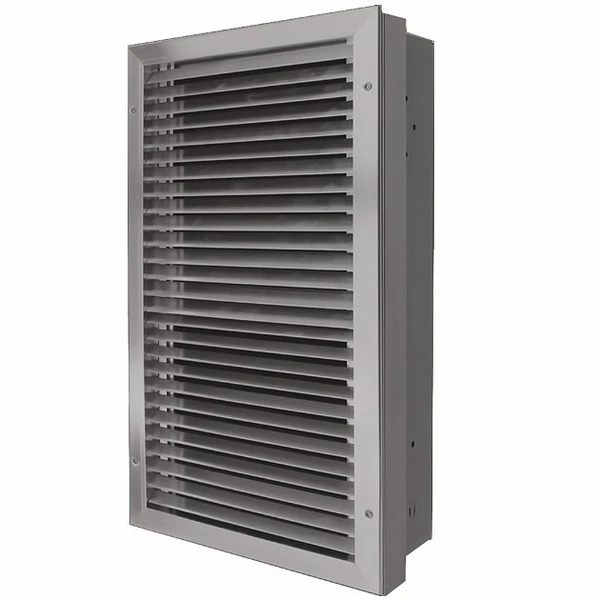

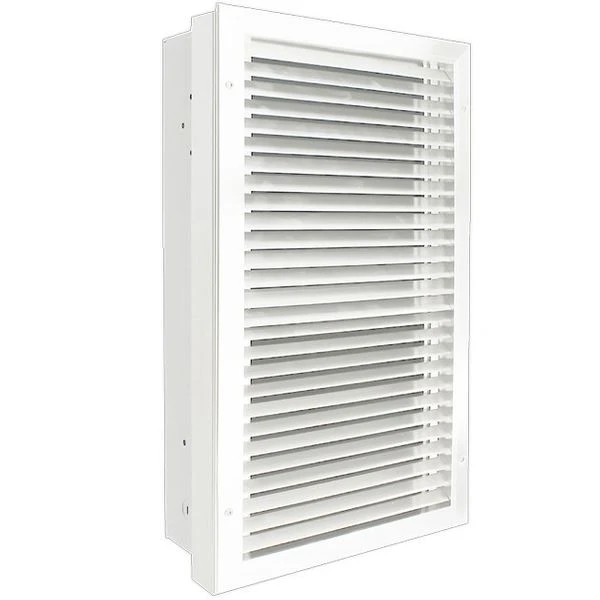

Name: King Electrical Architectural Pic-A-Watt Heater
SKU: LPWA2740-TP-W
Availability: InStock

Manufacturer: King Electric
Part Numbers: LPWA1227-S-TP-G, LPWA1227-S-TP-W, LPWA1227-TP-G, LPWA1227-TP-W, LPWA2045-S-TP-G, LPWA2045-S-TP-HLR-G, LPWA2045-S-TP-W, LPWA2045-TP-G, LPWA2445-S-TP-G, LPWA2445-S-TP-W
eFireplaceStore Item Number: KEM-LPWA1227-TP-W
UPCs: 093319181782, 093319181850, 093319181911, 093319181942, 093319181997, 093319182413, 093319182451, 093319183397, 093319184530, 093319205570

Features

Color: Grey, White
Size: 12 Inches
Dimensions: 12 3/4″ W x 23 1/4″ H x 5 1/2″ D
5-year limited warranty
Extruded aluminum grill
Proudly made in the USA
Long life unit bearing motor
Patented smart limit protection

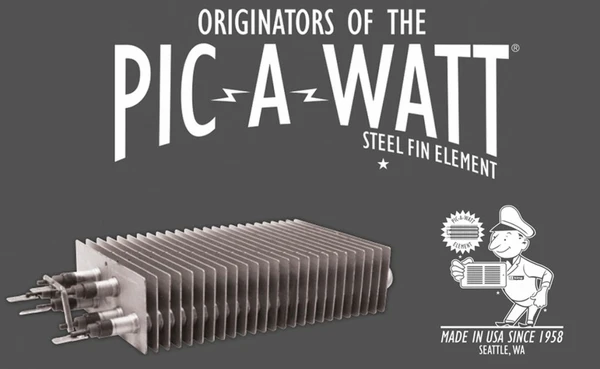

Pic-A-Watt multiple wattage options element
Tamper-resistant 3 position switch: fan/heat/off

Technical Specifications

Amps: 22.9 A (LPWA1227-S-TP-G, LPWA1227-S-TP-W, LPWA1227-TP-G, LPWA1227-TP-W) 21.6 A (LPWA2045-S-TP-G, LPWA2045-S-TP-HLR-G, LPWA2045-S-TP-W, LPWA2045-TP-G) 18.8 A (LPWA2445-S-TP-G, LPWA2445-S-TP-W, LPWA2445-TP-G, LPWA2445-TP-W) 14.4 A (LPWA2740-S-TP-G, LPWA2740-S-TP-HLR-G, LPWA2740-S-TP-W, LPWA2740-TP-G, LPWA2740-TP-W)
Volts: 120 V (LPWA1227-S-TP-G, LPWA1227-S-TP-W, LPWA1227-TP-G, LPWA1227-TP-W) 208 V (LPWA2045-S-TP-G, LPWA2045-S-TP-HLR-G, LPWA2045-S-TP-W, LPWA2045-TP-G) 240/208 V (LPWA2445-S-TP-G, LPWA2445-S-TP-W, LPWA2445-TP-G, LPWA2445-TP-W) 277 V (LPWA2740-S-TP-G, LPWA2740-S-TP-HLR-G, LPWA2740-S-TP-W, LPWA2740-TP-G, LPWA2740-TP-W)
Watts: 1250-1500-1750-2000-2750 W (LPWA1227-S-TP-G, LPWA1227-S-TP-W, LPWA1227-TP-G, LPWA1227-TP-W) 2250-2750-3000-3250-3500-3750-4000-4500 V (LPWA2045-S-TP-G, LPWA2045-S-TP-HLR-G, LPWA2045-S-TP-W, LPWA2045-TP-G, LPWA2445-S-TP-G, LPWA2445-S-TP-W, LPWA2445-TP-G, LPWA2445-TP-W) 2000-3000-4000 W (LPWA2740-S-TP-G, LPWA2740-S-TP-HLR-G, LPWA2740-S-TP-W, LPWA2740-TP-G, LPWA2740-TP-W)
Minimum Top Clearance: 12 Inches
Minimum Side Clearances: 12 Inches
Minimum Front Clearance: 36 Inches
Minimum Bottom Clearance: 4 Inches

* Please Note: Dual rated heaters will draw 13 percent fewer amps and 25 percent less wattage when operated at 208 V.

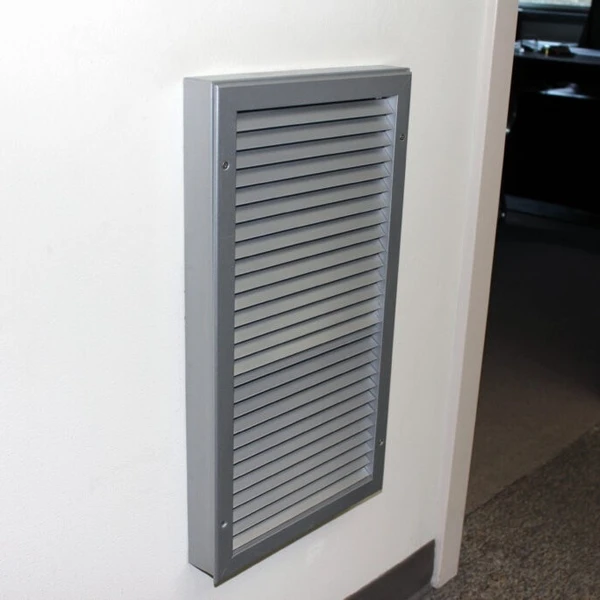

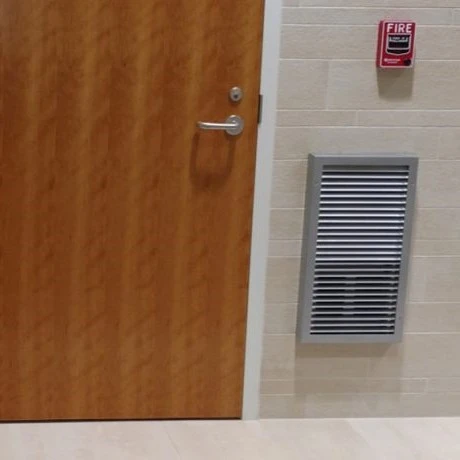

Entryways, corridors, and all public areas are best heated with the King Electrical Architectural Pic-A-Watt Heater. King’s exclusive Pic-A-Watt steel fin element allows customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements. The heavy-duty grill and frame can withstand heavy traffic and abuse. Tamper-resistant screws prevent unauthorized disassembly of the grill. Controls are recessed out-of-reach of fiddling fingers. High wattage and airflow capacities replenish entryways and hallways to prevent drafts from entering the building’s core. Keep toasty with a King Electrical Architectural Pic-A-Watt Heater!

Choose Style

120 V Silver (add $113.42), 120 V Silver with Surface Mount Can (add $154.42), 120 V White, 120 V White with Surface Mount Can (add $215.42), 208 V Silver (add $61.95), 208 V Silver with Surface Mount Can (add $218.42), 208 V Silver with Surface Mount Can and Lockout Relay (add $679.42), 208 V White with Surface Mount Can (add $150.57), 240 V Silver (add $61.95), 240 V Silver with Surface Mount Can (add $218.42), 240 V White (add $61.95), 240 V White with Surface Mount Can (add $150.57), 277 V Silver (add $157.42), 277 V Silver with Surface Mount Can (add $249.42), 277 V Silver with Surface Mount Can and Lockout Relay (add $710.42), 277 V White (add $157.42), 277 V White with Surface Mount Can (add $179.64)
